BHD-180SZ Horizontal Form Fill Seal Machine for Zipper Pouch Packing

BHD SERIES · BHD-180SZ

BHD-180SZ Horizontal Form Fill Seal Machine for Zipper Pouch Packing

BHD-180SZ Horizontal Form Fill Seal (HFFS) Machine is specially designed for doypack bags with zipper . It is often used to package gummy, biscuits, matcha powder, chili powder and other powders or granules. Horizontal doypack machine can also be added according to customer needs such as: Hanging holes function, shaped cutting, and other functions provide a wider range of applications. Independent zipper horizontal seal and vertical seal make the zipper and film material sealing good;then the top seal include hot a

Packaging Capacity

40-60ppm

Filling Capacity

1000ml

Pouch Width

90-180mm

Function

DoyPack,Shape,Hanging Hole

Get a quote on WhatsApp Email inquiry

Technical Parameters

Model	Pouch Width	Pouch Length	Filling Capacity	Packaging Capacity	Function	Weight	Power	Air Consumption	Machine Dimensions(LWH)
BHD-180S	90-180mm	110-250mm	1000ml	40-60ppm	DoyPack,Shape,Hanging Hole	2150kg	9kw	300NL/min	609310831908mm
BHD-180SZ	90-180mm	110-250mm	1000ml	40-60ppm	DoyPack,Shape,Hanging Hole,Zipper	2150kg	9kw	300NL/min	685312501900mm
BHD-180SC	90-180mm	110-250mm	1000ml	40-60ppm	DoyPack,Shape,Hanging Hole,Spout	2300kg	9kw	300NL/min	685312501900mm

Engineering & Features

How To Ensure Good Sealing Of Zipper Stand-Up Bags?

Independent zipper horizontal seal and vertical seal make the zipper and film material sealing good;then the top seal include hot and cold seal both.

How To Ensure The Accuracy Of Zipper Position？

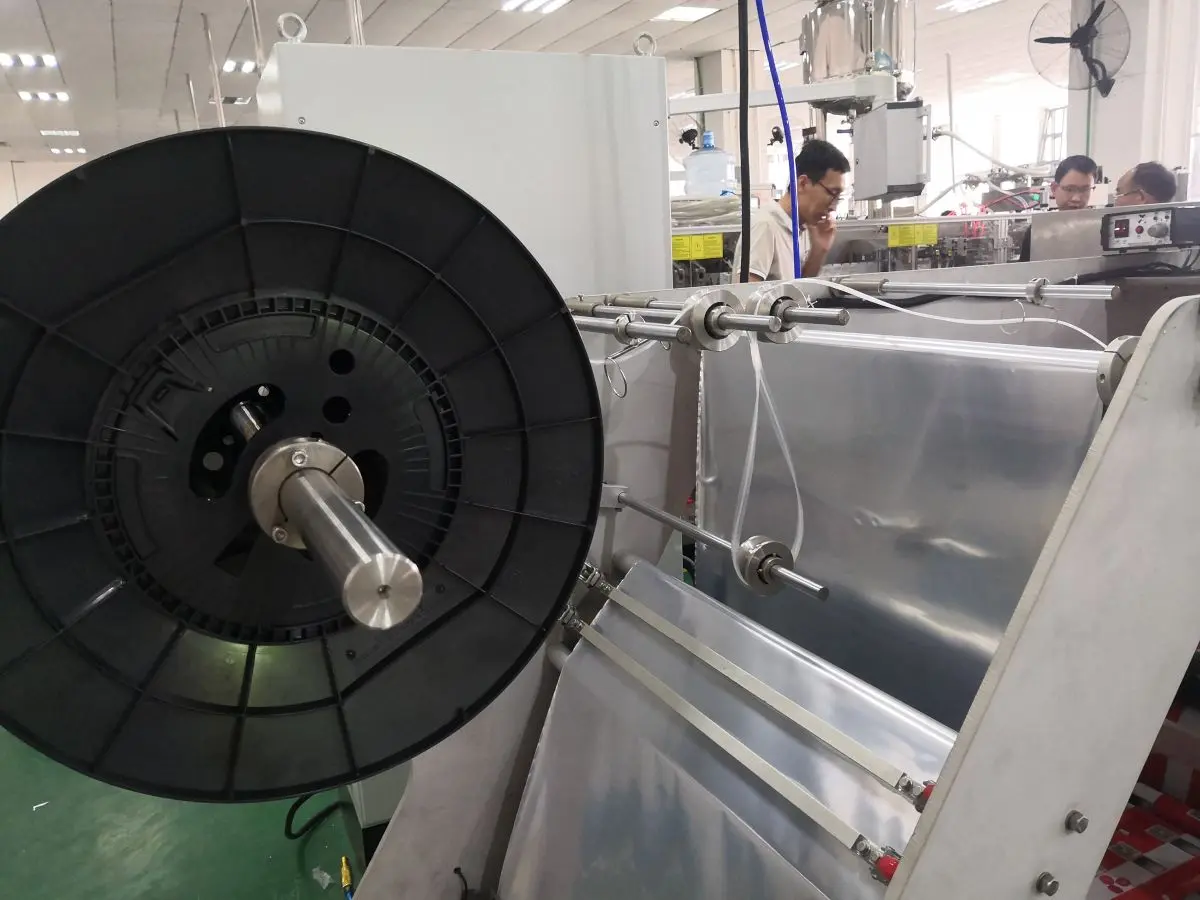

The zipper guide device ensures accurate zipper traction and positioning, and the zipper is stably pulled into the bag, making the zipper flat and cutting more smoothly.

How To Ensure The Integrity Of Bag Opening?

Through bag opening detection and assisted air blowing, the bag opening is more complete.

How To Ensure Accurate Cutting?

Servo pulling system make the bag running stable,no waggle,it will useful for the high accuracy cutting.
