BHD SERIES · BHD-240SZ

BHD-240SZ Horizontal Form Fill Seal Machine For Zipper Doypack

BHD-240SZ Horizontal Form Fill Seal (HFFS) Machine is specially designed for doypack bags with zippers. It is a fully automatic horizontal pouch packing machine that used to pack large bags of condiments, pet food, chocolate and other powders or granules. In addition to adding zipper function, you can also add hanging holes and other functions according to customer needs, which has a wider scope of application. Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured.

Packaging Capacity
40-60ppm
Filling Capacity
2000ml
Pouch Width
100-240mm
Function
DoyPack,Shape,Hanging Hole

See it run

Watch the machine run

Technical Parameters

ModelPouch WidthPouch LengthFilling CapacityPackaging CapacityFunctionWeightPowerAir ConsumptionMachine Dimensions(L*W*H)
BHD-240S100-240mm120-320mm2000ml40-60ppmDoyPack,Shape,Hanging Hole2300kg11kw400NL/min7000*1243*1878mm
BHD-240SZ100-240mm120-320mm2000ml40-60ppmDoyPack,Shape,Hanging Hole,Zipper2500kg11kw400NL/min7736*1243*1878mm
BHD-240SC100-240mm120-320mm2000ml40-60ppmDoyPack,Shape,Hanging Hole,Spout2500kg11kw400NL/min8100*1243*1878mm

Engineering & Features

How To Ensure Good Sealing Of Zipper Stand-Up Bags?

Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured.

How To Ensure The Accuracy Of Zipper Position?

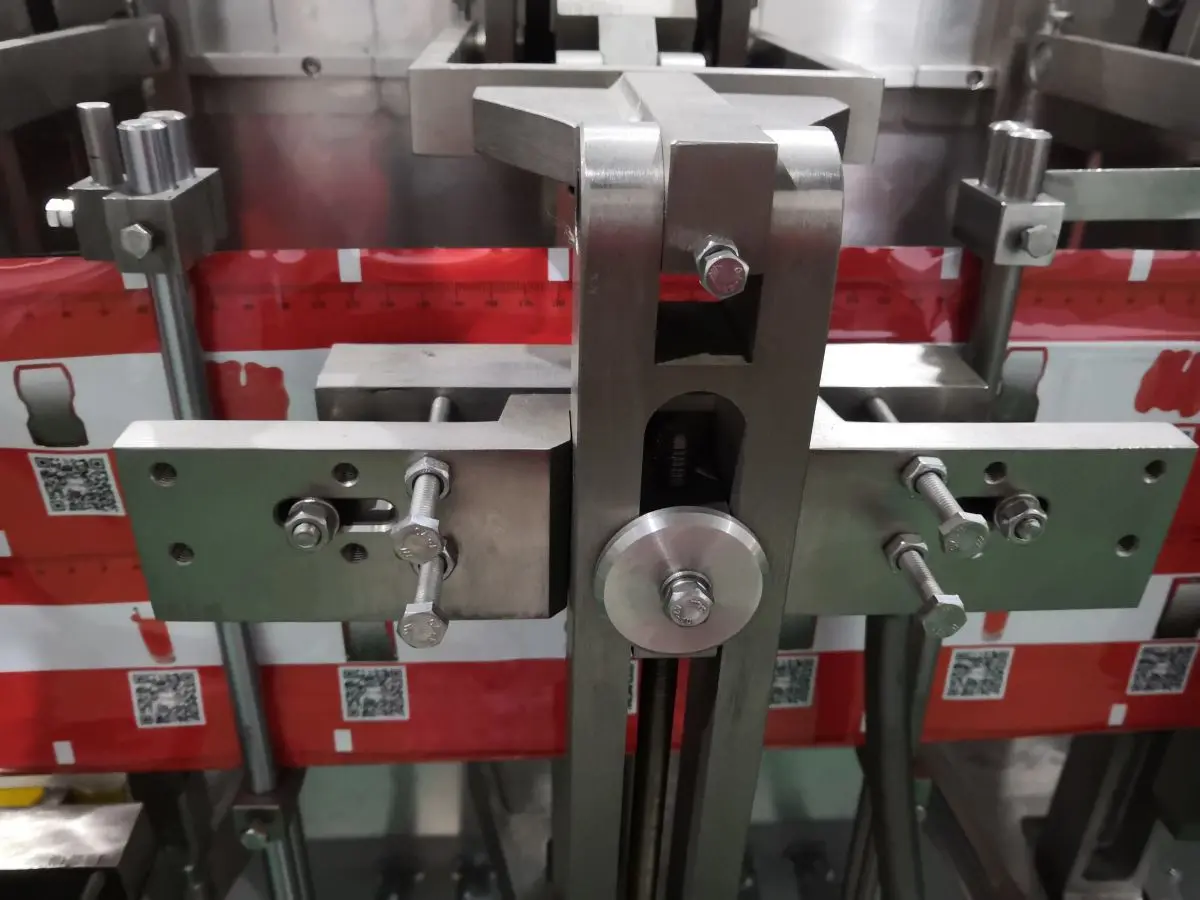

Zipper Guiding device ensures accurate zipper positioning.

How To Ensure The Integrity Of Bag Opening?

Through bag opening detection and assisted air blowing, the bag opening is more complete.

Can The Machine Packaging Mix Products?

Yes,according to our experience,our machine can filling “liquid+granule” or various granule.
