BHD SERIES · BHD-280DSZ

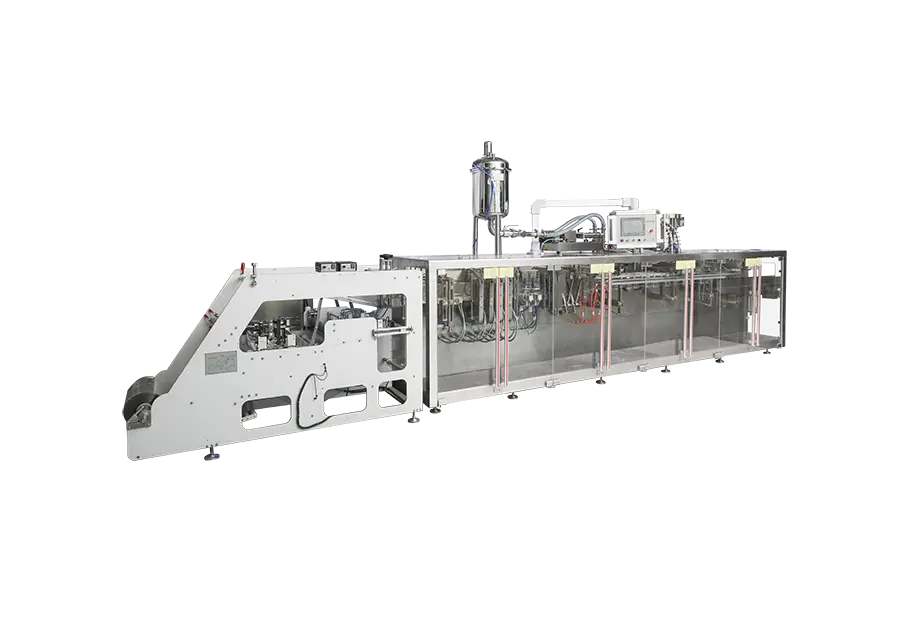

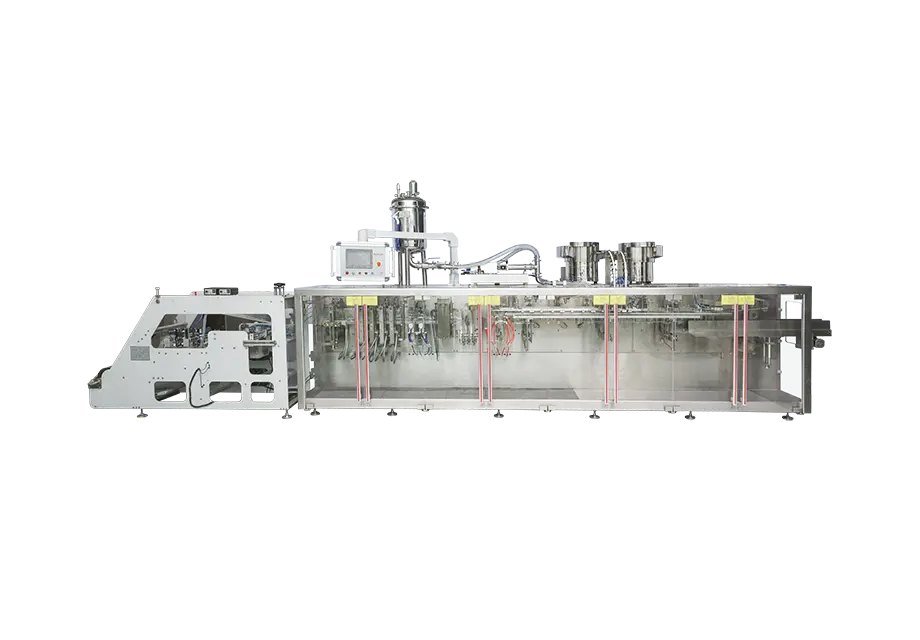

BHD-280DSZ Horizontal Duplex Doypack With Zipper Packing Machine

BHD-280DSZ Zipper Doypack Packing Machine ( Stand up Pouch Packing Machine ) is specially designed for doypack bags packing machine with zipper. It has two sets of workstations and can produce two bags at a time, doubling the production capacity. The maximum capacity of the bag can reach 500ml. It is commonly used for packaging nuts, pistachios, almonds, and biscuits. and other solids or powders such as matcha powder, chili powder, turmeric powder, etc., can meet the various needs of customers. Heat sealing first,

Packaging Capacity
80-100ppm
Filling Capacity
500ml
Pouch Width
90-140mm
Function
DoyPack,Shape,Hanging Hole

See it run

Watch the machine run

Technical Parameters

ModelPouch WidthPouch LengthFilling CapacityPackaging CapacityFunctionWeightPowerAir ConsumptionMachine Dimensions(L*W*H)
BHD-280DS90-140mm110-250mm500ml80-100ppmDoyPack,Shape,Hanging Hole2150kg15kw400NL/min7800*1300*1878mm
BHD-280DSZ90-140mm110-250mm500ml80-100ppmDoyPack,Shape,Hanging Hole,Zipper2150kg15kw400NL/min7736*1300*1878mm
BHD-280DSC90-140mm110-250mm500ml80-100ppmDoyPack,Shape,Hanging Hole,Spout215000kg15kw400NL/min8200*1300*1878mm

Engineering & Features

How To Ensure Good Sealing Of Zipper Stand-Up Bags?

Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured.

How To Ensure The Accuracy Of Zipper Position?

Zipper Guiding device ensures accurate zipper positioning.

How To Ensure The Integrity Of Bag Opening?

Through bag opening detection and assisted air blowing, the bag opening is more complete.

How To Ensure Accurate Cutting?

Use the most suitable cutting equipment and use two cutting methods to make cutting more accurate.
