BHD-240DS Dual-Output Horizontal Form-Fill-Seal Machine for Shaped Doypack

BHD SERIES · BHD-240DS

BHD-240DS Dual-Output Horizontal Form-Fill-Seal Machine for Shaped Doypack

BHD-240DS Horizontal form fill seal machine is a duplex pouch packaging machinery that specially designed for special-shaped stand-up bags. The packaging capacity is 10 -500ml and packing speed can arrived 100ppm . It is often used to package juice, energy gel, tomato ketchup, puree, enzyme and other liquids, and can also be used to package powder, granules, and viscosity. For more technical specifications, please contact our engineers. Heat sealing first, then cold sealing. After two sealings, the airtightness of

Packaging Capacity

35-45ppm

Filling Capacity

350ml

Pouch Width

60-130mm

Function

Doypack,Shape

Get a quote on WhatsApp Email inquiry

Technical Parameters

Model	Pouch Width	Pouch Length	Filling Capacity	Packaging Capacity	Function	Weight	Powder	Air Consumption	Machine Dimensionsl
BHD-130S	60-130mm	80-190mm	350ml	35-45ppm	Doypack,Shape	2150kg	6kw	300NL/min	4720mm1125mm1550mm
BHD-240DS	80-120mm	120-250mm	300ml	70-90ppm	Doypack,Shape	2300kg	11KW	400NL/min	6050mm1002mm1990mm

Engineering & Features

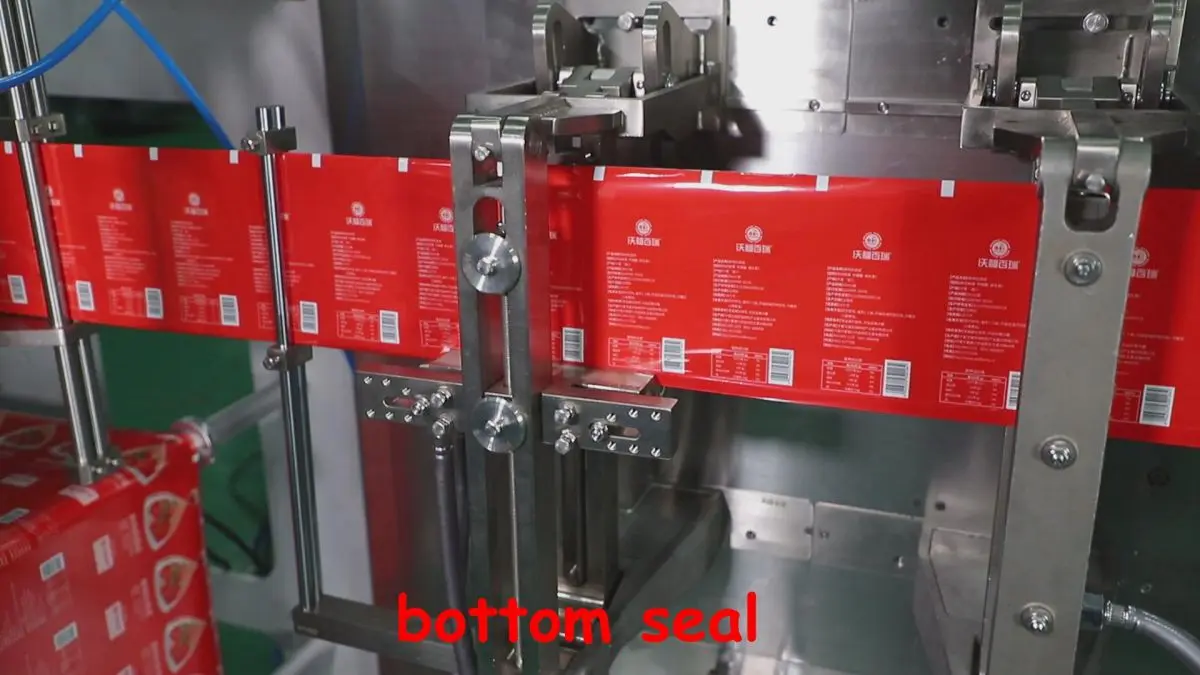

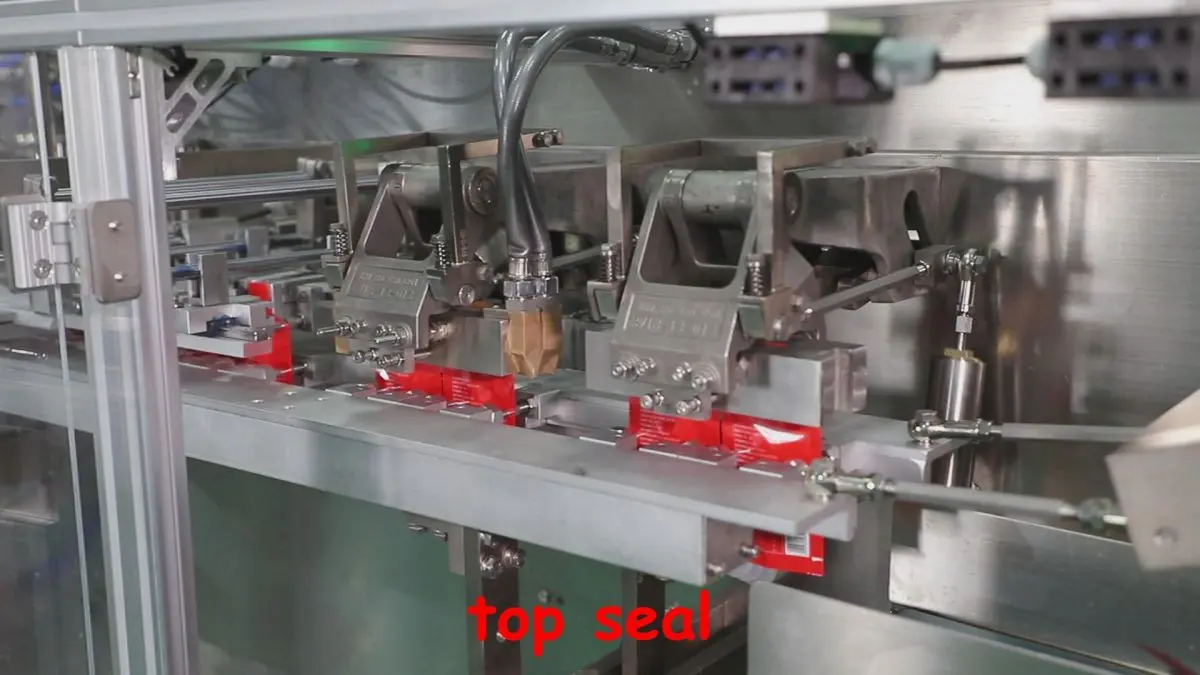

How To Ensure The Bag Is Well Sealed?

Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured;for the two top sealing,customer can choice working with “diamond sealing and lined sealing”,by this way,the sealing will more stronger.

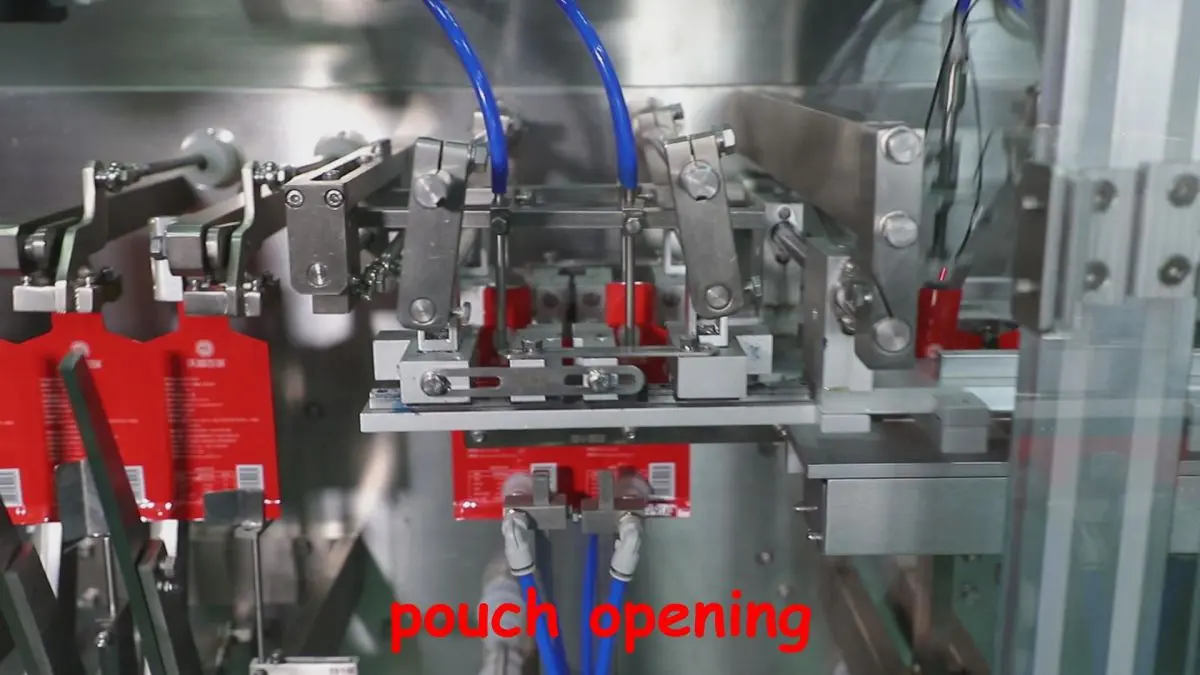

How To Ensure The Integrity Of Bag Opening?

Through bag opening detection and assisted air blowing, the bag opening is more complete;at the same time,the suction cup we use USA brand,the quality and shelf-life will more better than the normal type.
