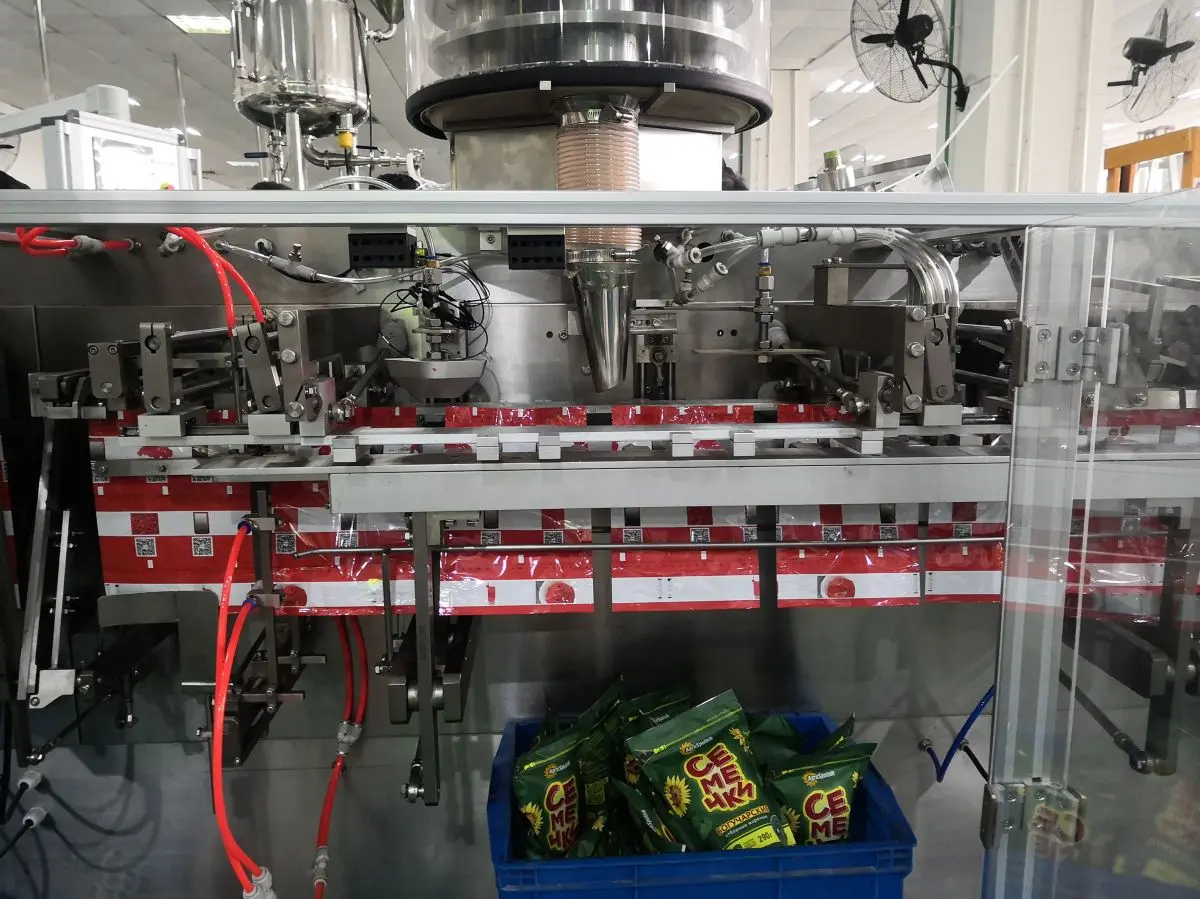

Boevan Horizontal Form Fill Seal (HFFS) Machine is a high-efficiency auto packing solution for zipper pouch . Packaging speeds can reach up to 80–100 ppm. The contact parts are constructed from 316L stainless steel, complying with industry standards for pharmaceuticals and food products. This zipper bag packaging machine is commonly used for packaging products such as milk powder, coffee, dried fruits, candies, and capsules.
| Model | Pouch Width | Pouch Length | Filling Capacity | Packaging Capacity | Function | Weight | Power | Air Consumption | Machine Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|---|---|
| BHD-180SZ | 90-180mm | 110-250mm | 1000ml | 40-60ppm | DoyPack,Shape,Hanging, Hole Zipper, Spout | 2150kg | 9kw | 300NL/min | 6090*1100*1878mm |
| BHD-240SZ | 90-240mm | 120-320mm | 2000ml | 40-60ppm | DoyPack,Shape,Hanging, Hole Zipper, Spout | 2550kg | 11kw | 400NL/min | 7736*1300*1878mm |
| BHD-280DSZ | 90-140mm | 110-250mm | 500ml | 80-100ppm | DoyPack,Shape,Hanging, Hole Zipper, Spout | 215000kg | 15kw | 400NL/min | 8200*1300*1878mm |
Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured.
Zipper Guiding device ensures accurate zipper positioning.
Through bag opening detection and assisted air blowing, the bag opening is more complete.
Use the most suitable cutting equipment and use two cutting methods to make cutting more accurate.
