BVS SERIES · BVS8-880

BVS8-880 Multilane Stick Sachet Packing Machine

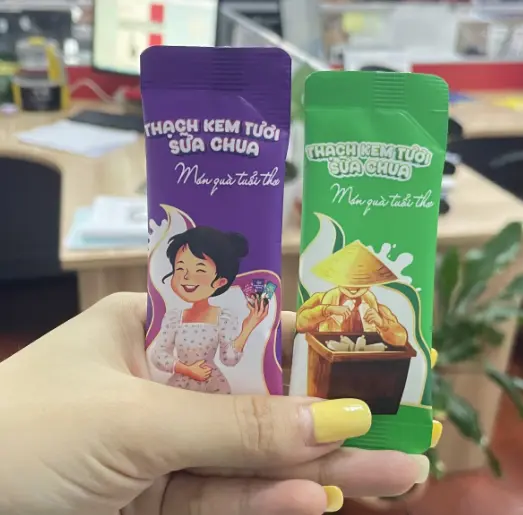

Boevan BVS8-880 multilane stick sachet packing machine is specially designed for stick bags. 8 lanes automatic quantitative measurement, forming, filling, sealing cutting and other functions. It is often used to package not only honey, mouthwash, oil, syrup liquid, jelly, gel, but also milk powder, coffee powder, medicinal powder and sugar, etc. powder granule or liquid products. When change bag width,need replace “bag forming device/horizontal seal bar/punching knife”;when change bag length,only need adjust the ma

Packaging Capacity
240
Pouch Width
17-30mm
Weight
1900

See it run

Watch the machine run

Technical Parameters

ModelPouch LengthPouch WidthPackaging CapacityFilm widthLanes NoWeightMachine Dimensions(L*W*H)
BVS6-48050-180mm17-30mm240480mm619001530*1880*2700mm
BVS8-88050-180mm17-45mmMax.400 PPM680mm821001730*1880*2700mm
BVS8-68050-180mm17-30mmMax.400 PPM680mm821001730*1880*2700mm

Engineering & Features

Can The Machine Running For The Different Bag Size?

When change bag width,need replace “bag forming device/horizontal seal bar/punching knife”;when change bag length,only need adjust the machine,no need replace the parts.so if customer purchase more than 4 lanes machine,usually we suggest customer keep the bag width same,only change the length for different volume.

How About The Cutting?

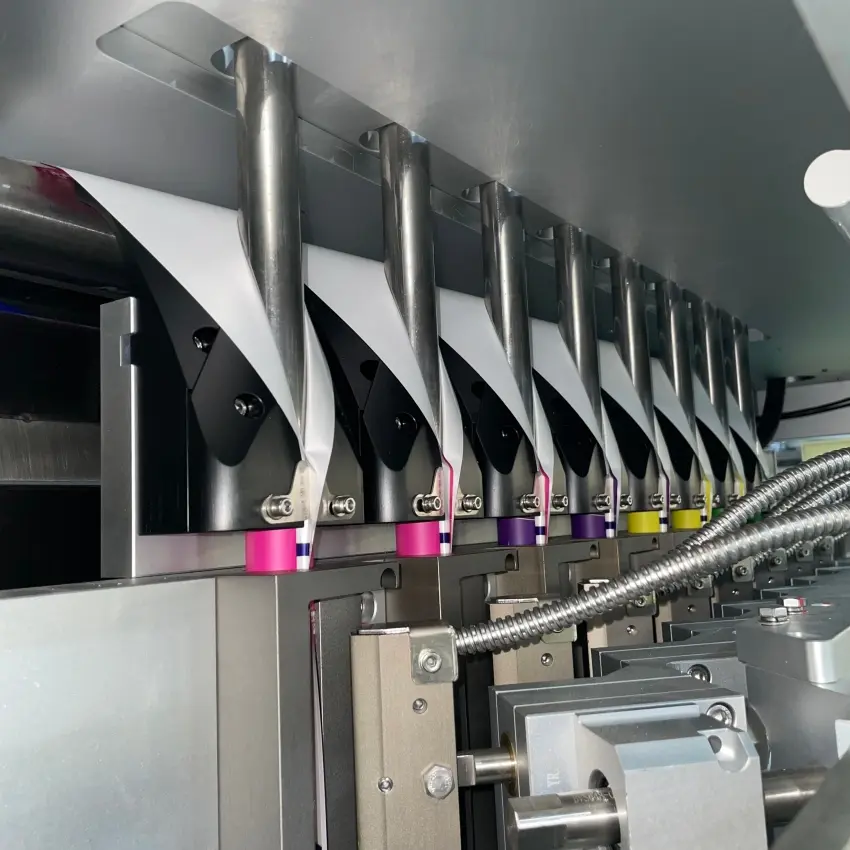

For multi-lanes machine,how many lanes will provide how many sets of punching knife,by this way can keep the bag cutting appearance good,also if one of the knife broken,other’s can working.

How To Improve The Aesthetics Of Bags?

By adjusting the temperature of the sealing block, the seals more smoothly.
