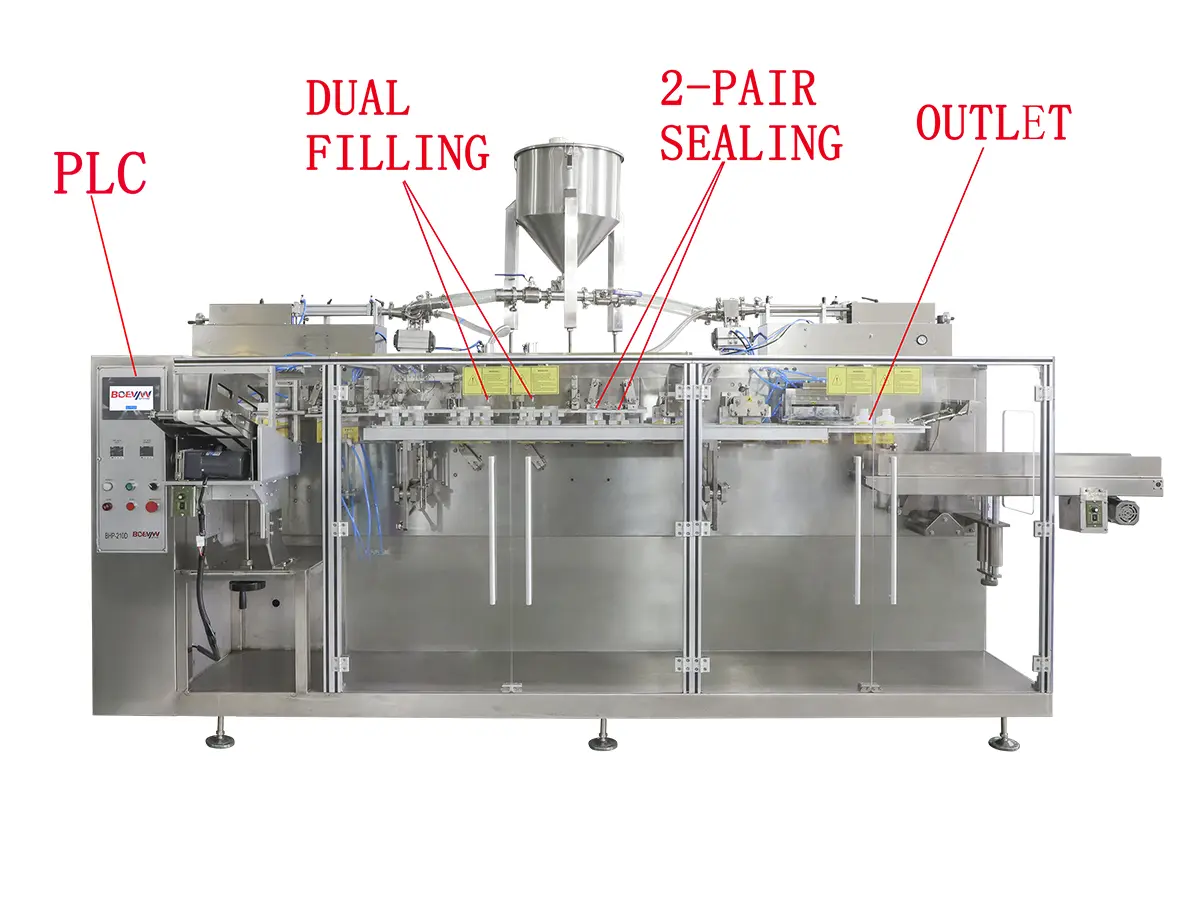

High Speed BHP-210D Horizontal Premade Pouch Packing Machine
The BHP-210D Horizontal Pre-made Pouch Packaging Machine is specifically designed for the filling and sealing of pouch-packaged products with a volume of less than 400ml . This model is compatible with a wide variety of pouch types, including Doypacks, flat pouches, spout pouches, zipper pouches, and M-bags. Furthermore, it is equipped with an additional set of workstations, enabling the simultaneous packaging and production of two pouches at once; this effectively doubles output capacity, reaching a maximum produc
Packaging Capacity
80-100ppm
Filling Capacity
1200ml
Pouch Width
90-210mm
Function
Flat Pouch,Doypack
See it run
Technical Parameters
| Model | Pouch Width | Pouch Length | Filling Capacity | Packaging Capacity | Function | Weight | Power | Air Consumption | Machine Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|---|---|
| BHP-210D | 90-210mm | 110-300mm | 1200ml | 80-100ppm | Flat Pouch,Doypack | 1100kg | 4.5kw | 200NL/min | 3216*1190*1422mm |
| BHP-280D | 90-140mm | 110-300mm | 600ml | 80-100ppm | Flat Pouch,Doypack | 2150kg | 4.5kw | 500NL/min | 4300*970*1388mm |
| BHP-280DZ | 90-140mm | 110-300mm | 600ml | 80-100ppm | Flat Pouch,Doypack,Zipper | 2150kg | 4.5kw | 500NL/min | 4300*970*1388mm |
Engineering & Features
What Kind Of Bag Suitable For This Machine？
Stand up doypack bag/zipper doypack bag/corner spout doypack bag/flat bag....
How To Ensure The Integrity Of Bag Opening?
Through bag opening detection and assisted air blowing, the bag opening is more complete.
What Kind Of Certification We Have About This Machine?
We can provide CE/ISO/Manuel document/4Q document;if you need other certification,such as CSA,we also can made it,but there will have extra charge for the “certification company”.
What Kind Of Filling Device Can Working With This Machine?
Piston pump filler for liquid;servo motor auger filler for powder;multi-weigher for granule;electric counting device for capsule.....
