BVL SERIES · BVL-520
BVL-520 Vertical Pillow Bag Packing Machine
Boevan BVL-520 Vertical Pouch Packing Machine designed for pillow-bag (back seal pouch), 3/4 side seal sachet, gusset-bag. The bag size, filling volume, etc. can be changed according to customer needs.This equipment is simple and convenient to operate. It utilizes a servo film-pulling system, ensuring stable and reliable operation while effectively preventing film misalignment. The device is suitable for packaging granular materials—such as grains, sugar, and salt; powdered materials—such as milk powder and meal re
Packaging Capacity
25-60PPm
Pouch Width
80-200mm
Weight
500kg
See it run
Technical Parameters
| Model | Pouch Length | Pouch Width | Packaging Capacity | Powder | Air Consumption | Weight | Machine Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|
| BVL-420 | 80-300mm | 80-200mm | 25-60PPm | 3.0KW | 6-8kg/㎡ | 500kg | 1650*1300*1700mm |
| BVL-520 | 100-350mm | 80-250mm | 25-60ppm | 5.0KW | 6-8kg/㎡ | 700kg | 1350*1800*1700mm |
| BVL-620 | 100-400mm | 100-300mm | 25-60ppm | 4.0KW | 6-10kg/㎡ | 800kg | 1350*1800*1700mm |
| BVL-720 | 100-450mm | 100-350mm | 25-60ppm | 3.0KW | 6-8kg/㎡ | 900kg | 1650*1800*1700mm |
Engineering & Features

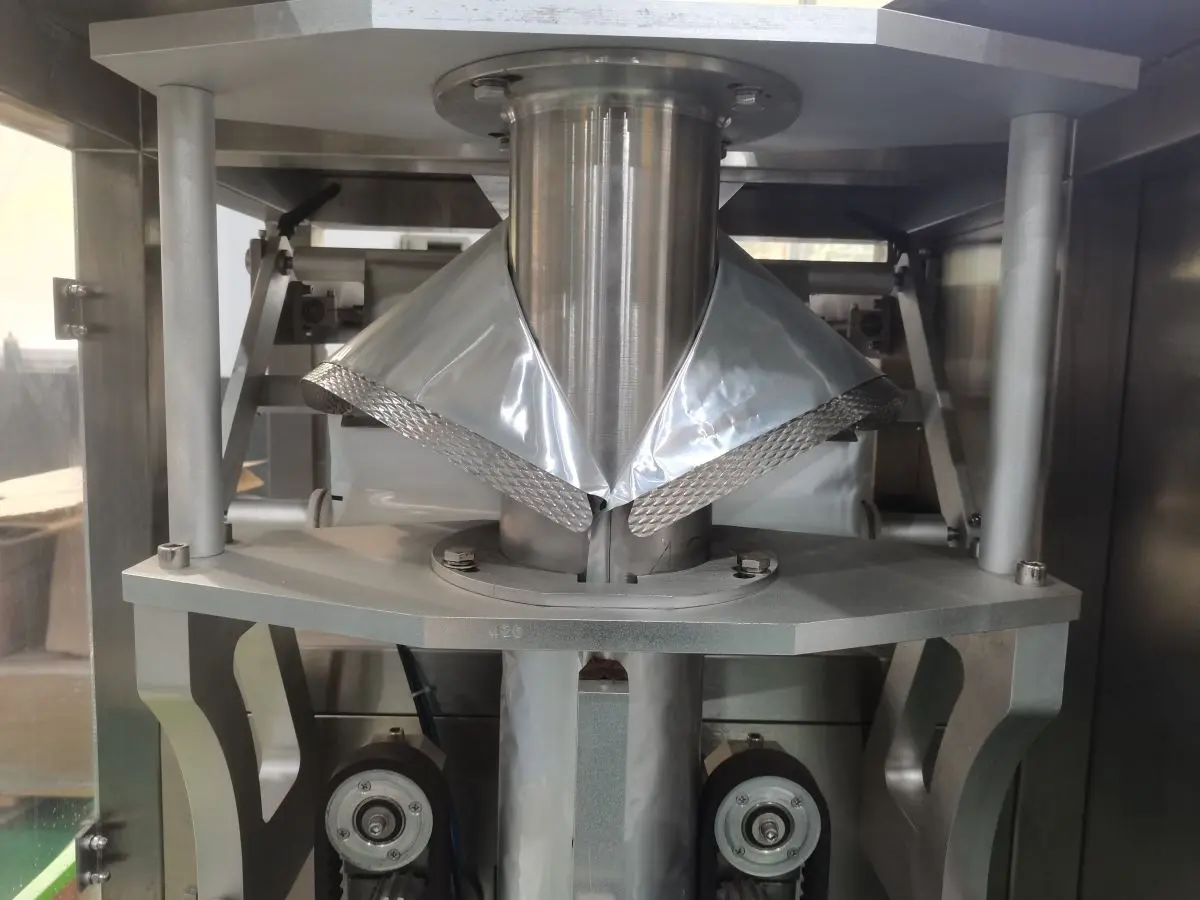

How To Adjust Bag Size？
When customer want change bag width,need replace bag forming device/cutting knife,easy to adjust.
What’S The Additional Function Can This Machine Support?
Filling nitrogen function,usually use for like “puffed food”;dust collector for powder;weight detector or metal detector;
How To Improve The Aesthetics Of Bags?
By adjusting the temperature of the sealing block, the seals more smoothly.
What’S The Factory Address?
No.1633,jinxuan road,nanqiao town,fengxian district,shanghai china.
