BVL SERIES · BVL-420

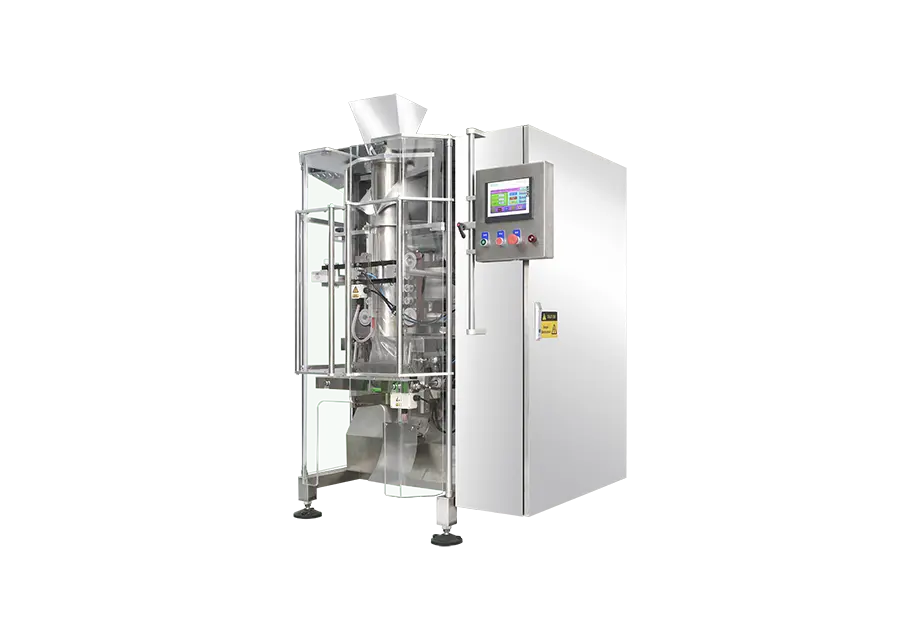

BVL-420 Vertical Pillow Bag Packing Machine
BVL-420 is specially designed for back-sealing bags and pin-back sealing bags. It is suitable for smaller back-sealing bags. The bag width it can make is 80-200mm and the bag length is 80-300mm. The fastest can reach 80bag/min. It can package salt, chicken essence, white sugar and other granules, as well as water, oil and other liquids, and has a wide range of applications. Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured.
Packaging Capacity
25-60PPm
Pouch Width
80-200mm
Weight
500kg
See it run
Technical Parameters
| Model | Pouch Length | Pouch Width | Packaging Capacity | Powder | Air Consumption | Weight | Machine Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|
| BVL-420 | 80-300mm | 80-200mm | 25-60PPm | 3.0KW | 6-8kg/㎡ | 500kg | 1650*1300*1700mm |
| BVL-520 | 100-350mm | 80-250mm | 25-60ppm | 5.0KW | 6-8kg/㎡ | 700kg | 1350*1800*1700mm |
| BVL-620 | 100-400mm | 100-300mm | 25-60ppm | 4.0KW | 6-10kg/㎡ | 800kg | 1350*1800*1700mm |
| BVL-720 | 100-450mm | 100-350mm | 25-60ppm | 3.0KW | 6-8kg/㎡ | 900kg | 1650*1800*1700mm |
Engineering & Features
How To Ensure The Bag Is Well Sealed?
Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured.
How To Ensure Accurate Cutting?
Use the most suitable cutting equipment and use two cutting methods to make cutting more accurate.
How To Improve The Aesthetics Of Bags?
By adjusting the temperature of the sealing block, the seals more smoothly.
