BHS SERIES · BHS-180
BHS-180 Horizontal Form Fill Seal Machine for Standaed Flat-Pouch
BHS-180 Horizontal Form Fill Seal (HFFS) Machine designed for flat-pouches such as 3/4 side seal sachet , zipper pouch , and spout pouch. The maximum packaging capacity can reach 500ml . It can be used to package chicken essence, insecticide powder, cake flour, oral liquid, ketchup sauces and other powders, granules, liquids, viscosity products. We have two sets of independent top sealing device,according to customer product character,can choice “hot seal+cold seal” or “hot seal + hot seal”.by this way,can promise
Packaging Capacity
40-60ppm
Filling Capacity
500ml
Pouch Width
60-180mm
Function
3 side seal,4 side seal
See it run
Technical Parameters
| Model | Pouch Width | Pouch Length | Filling Capacity | Packaging Capacity | Function | Weight | Power | Air Consumption | Machine Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|---|---|
| BHS-180 | 60-180mm | 80-225mm | 500ml | 40-60ppm | 3 side seal,4 side seal | 1250kg | 4.5kw | 200NL/min | 3500*970*1530mm |
| BHS-180T | 60-90mm | 80-225mm | 100ml | 40-60ppm | 3 side seal,4 side seal,Twin Bag | 1250kg | 4.5kw | 200NL/min | 3500*970*1530mm |
Engineering & Features

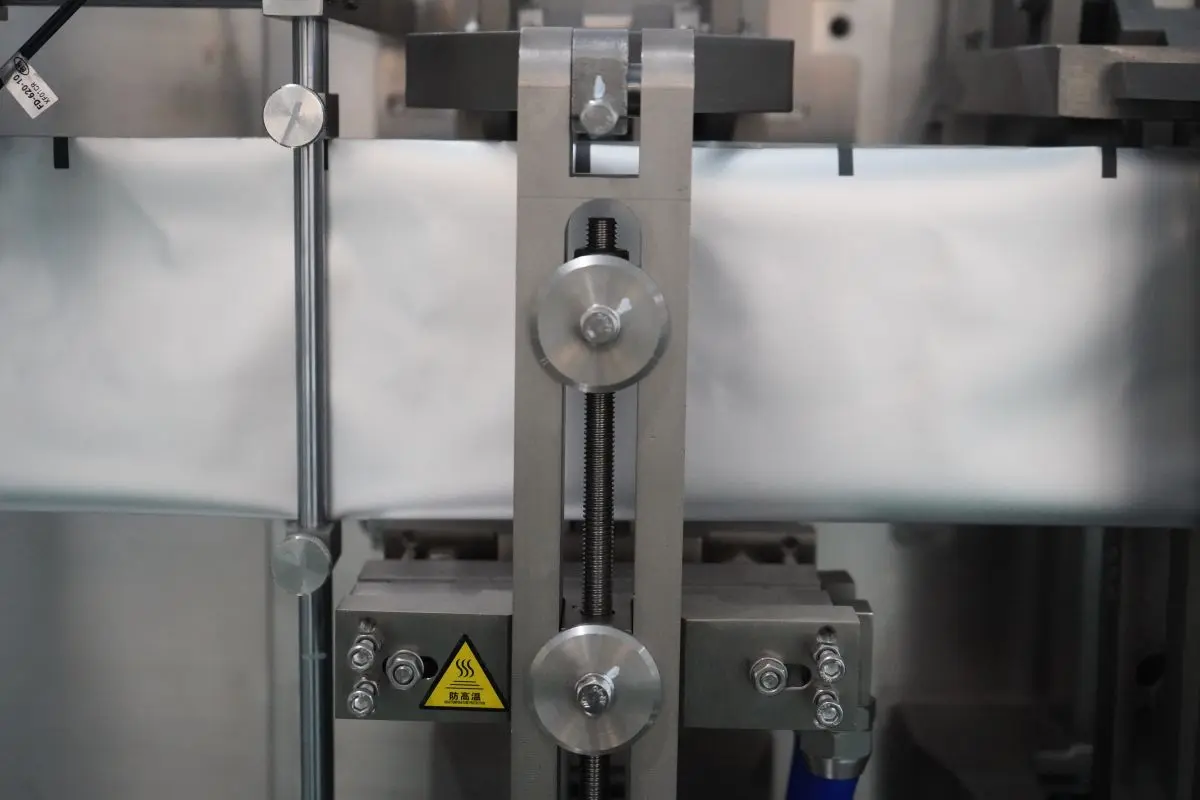

How To Ensure The Bag Is Well Sealed?
We have two sets of independent top sealing device,according to customer product character,can choice “hot seal+cold seal” or “hot seal + hot seal”.by this way,can promise the top seal quality good.

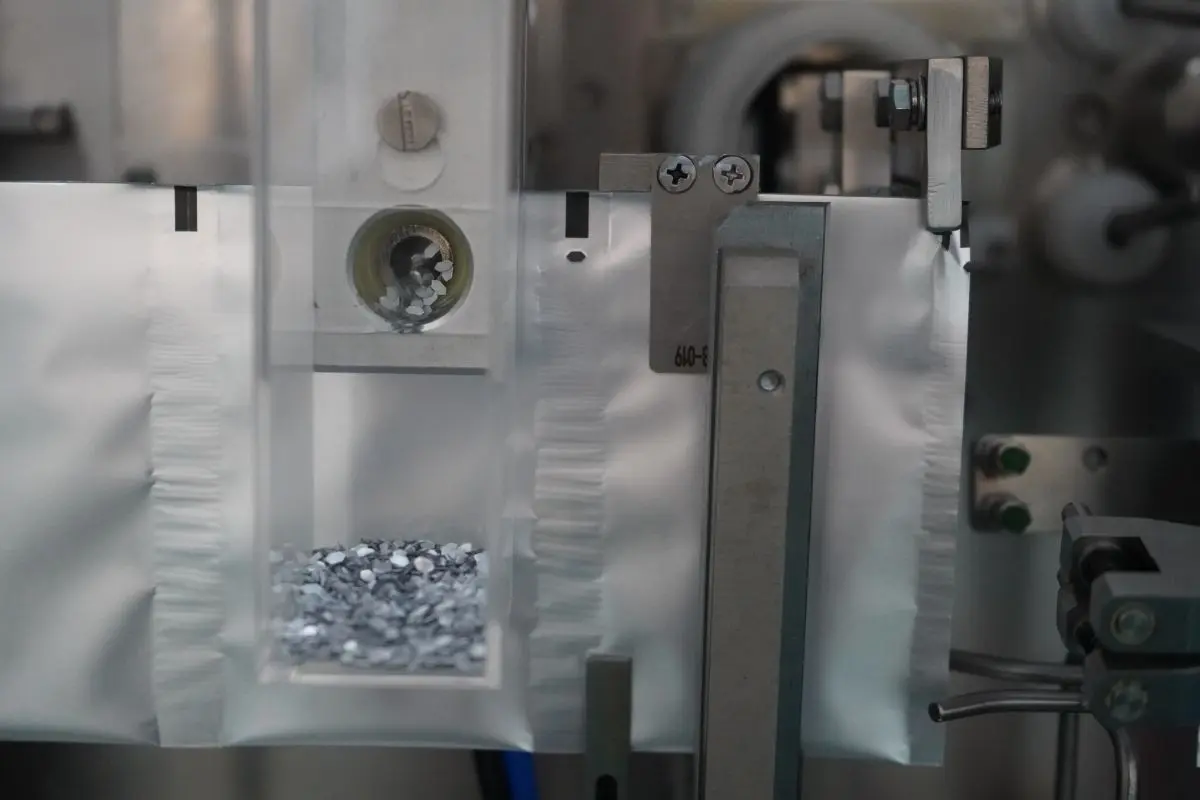

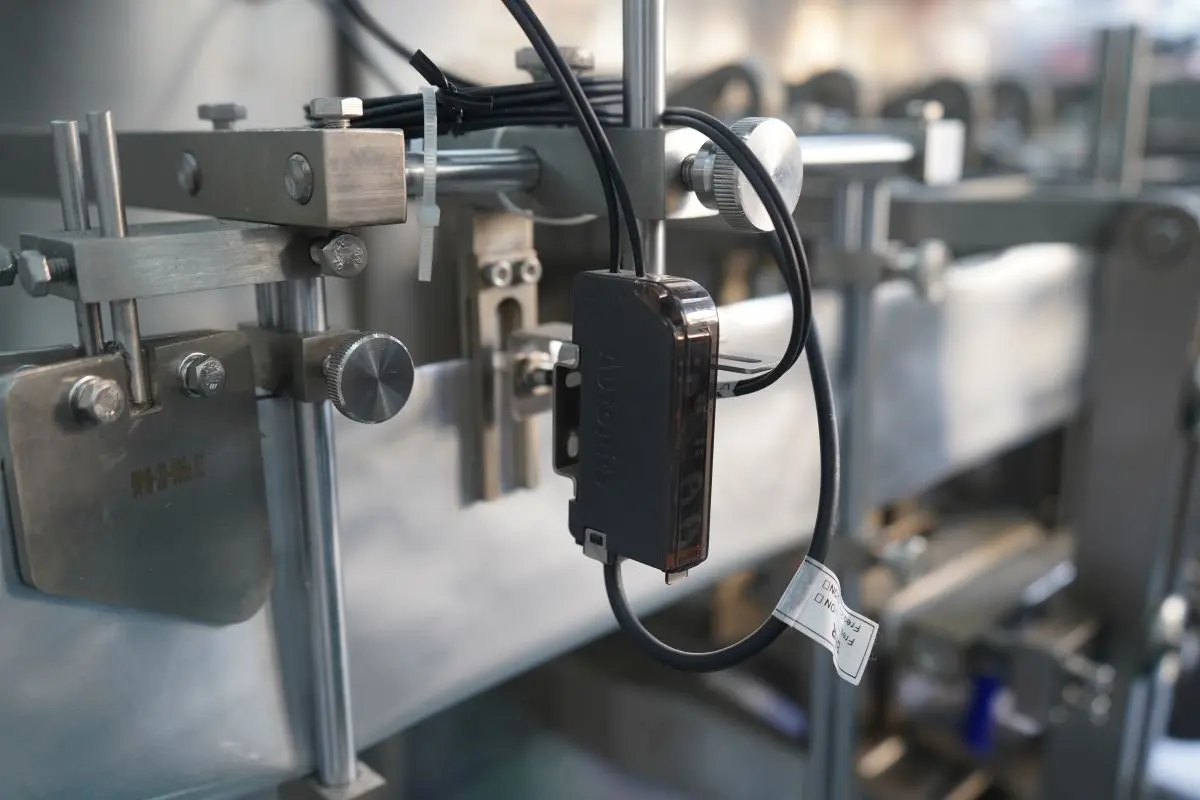

How To Ensure The Integrity Of Bag Opening?
Through bag opening detection and assisted air blowing, the bag opening is more complete.
How To Ensure Accurate Cutting?
Use the most suitable cutting equipment and use two cutting methods to make cutting more accurate.
What’S The Additional Function We Can Provide By This Machine?
For the bag,we can add “round corner/easy tear/hanging hole/zipper function”,also can made the different shape of the bag according to customer design.
