BVS SERIES · BVS-220

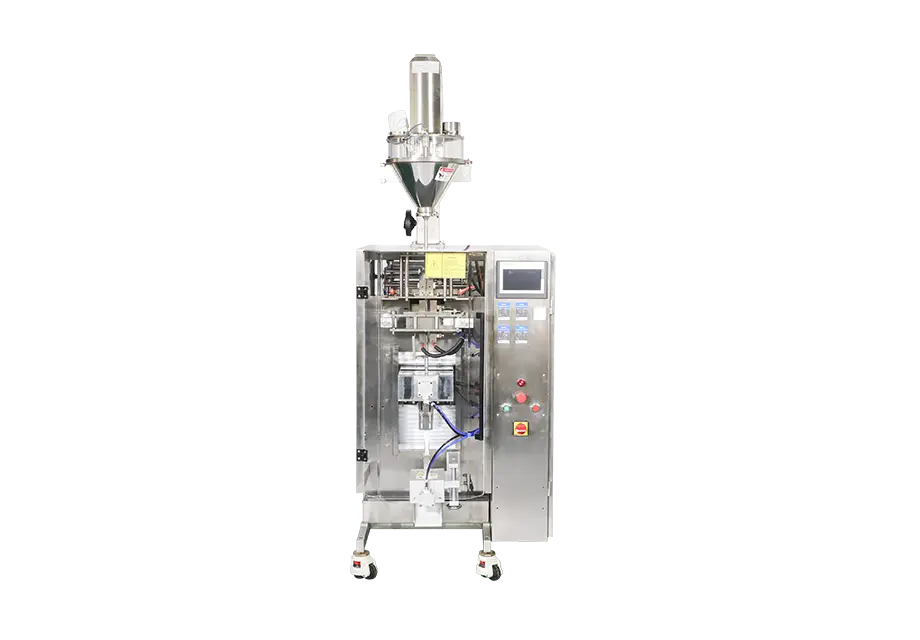

BVS-220 Single-Lane Stick Bag Packing Machine Vertical
BVS-220 Single-lane Stick Pack Machine designed for smlla pillow bag. This type of the vertical packing machine is compact and occupies a small area. It can produce up to 30 bags per minute and is commonly used for packaging pharmaceuticals & supplements powder, condiments, and some solid beverages. Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured.
Packaging Capacity
25-40ppm
Filling Capacity
100ml
Pouch Width
20-70mm
Weight
400kg
See it run
Technical Parameters
| Model | Pouch Width | Pouch Length | Filling Capacity | Packaging Capacity | Weight | Film width | Lanes No | Speed(Bag/min) | Machine Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|---|---|
| BVS-220 | 20-70mm | 50-180mm | 100ml | 25-40ppm | 400kg | 220kg | 1 | 40 | 2110*1200*1690mm |
| BVS2-220 | 20-45mm | 50-180mm | 100ml | 25-40ppm | 400kg | 220kg | 2 | 80 | 815*1155*2260mm |
Engineering & Features
How To Ensure The Bag Is Well Sealed?
Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured.

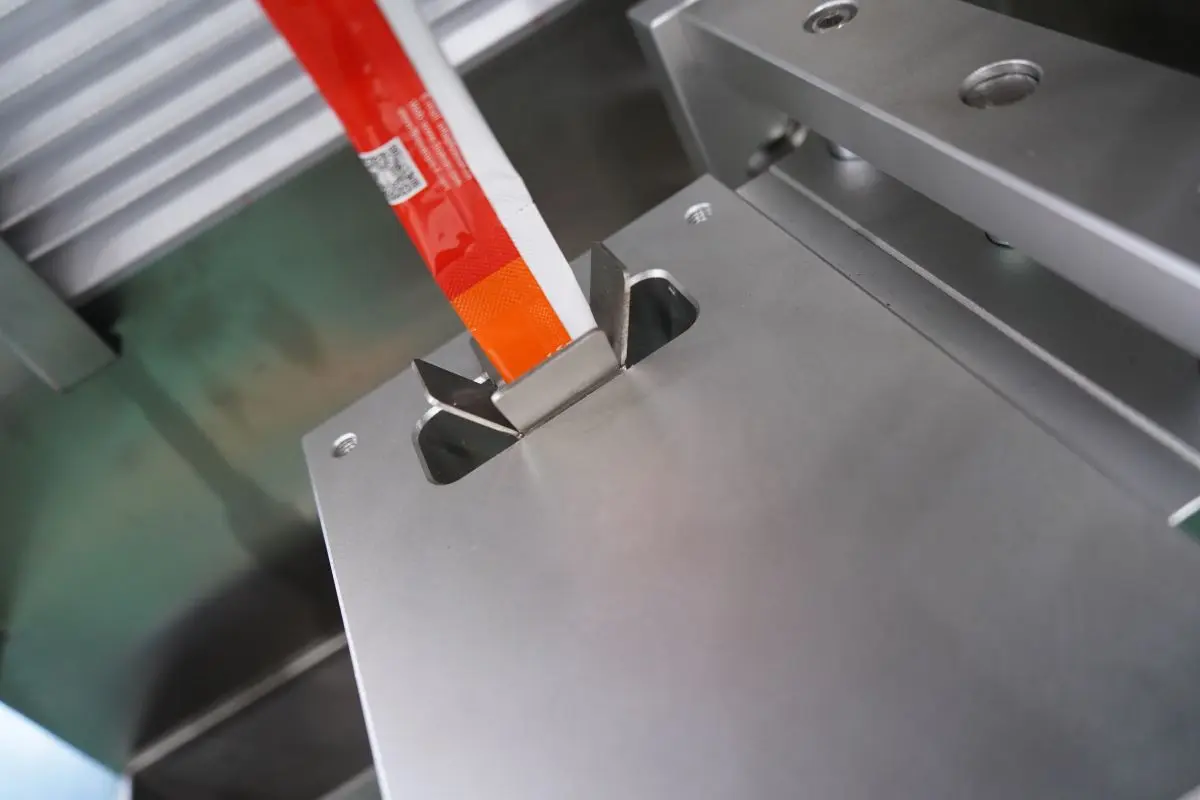

How To Ensure Accurate Cutting?
Use the most suitable cutting equipment and use two cutting methods to make cutting more accurate.
How To Improve The Aesthetics Of Bags?
By adjusting the temperature of the sealing block, the seals more smoothly.
