BHD SERIES · HIGH-SPEED
High-Speed BHS-180T Horizontal Twin Bags Packing Machine
BHS-180T Horizontal form fill seal machine designed for twin-link falt-pouch . The twin-bag is a type of packaging in which two bags are joined together in parallel, as they are not completely severed from one another during the production process. This bag format is currently highly popular for facial mask packaging (where the serum and the mask itself are housed in separate compartments, allowing them to be mixed by squeezing or tearing the bag open). This type of the hffs machine also can pack for 3 or 4 side se
Packaging Capacity
40-60ppm
Filling Capacity
500ml
Pouch Width
60-180mm
Function
3 side seal,4 side seal
See it run
Technical Parameters
| Model | Pouch Width | Pouch Length | Filling Capacity | Packaging Capacity | Function | Weight | Power | Air Consumption | Machine Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|---|---|
| BHS-180 | 60-180mm | 80-225mm | 500ml | 40-60ppm | 3 side seal,4 side seal | 1250kg | 4.5kw | 200NL/min | 3500*970*1530mm |
| BHS-180T | 60-90mm | 80-225mm | 100ml | 40-60ppm | 3 side seal,4 side seal,Twin Bag | 1250kg | 4.5kw | 200NL/min | 3500*970*1530mm |
Engineering & Features
How To Ensure The Bag Is Well Sealed?

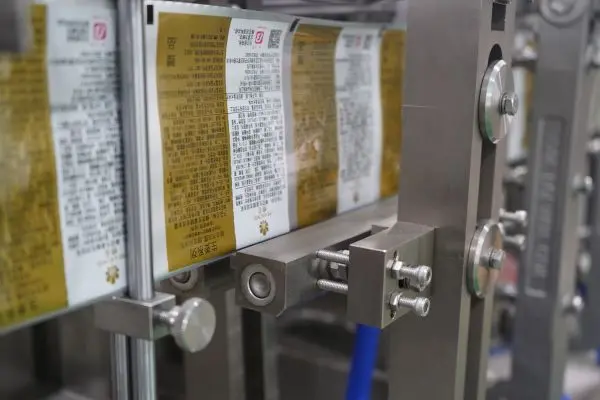

Heat sealing first, then cold sealing. After two sealings, the airtightness of the bag is ensured.
How To Ensure The Integrity Of Bag Opening?
Through bag opening detection and assisted air blowing, the bag opening is more complete.
How To Ensure Accurate Cutting?
Use the most suitable cutting equipment and use two cutting methods to make cutting more accurate.
How To Improve The Aesthetics Of Bags?
By adjusting the temperature of the sealing block, the seals more smoothly.
