BVS SERIES · BVS4-480
BVS4-480 Multilane Stick Packing Machine | 4 lanes VFFS Machines
BVS4-480 Vertical Form Fill Seal (VFFS) Machine designed for stick bags(small pillow-bag) high speed packing with multilane design. This type of the vertical packing machine can be customized for 1-16 lanes according to customer requirements. 4 lane stick packing machine packing speed can arrived from 120-200 P.P.M. It is often used to package not only honey, mouthwash, oil, syrup liquid, jelly, but also milk powder, coffee powder, medicinal powder and sugar, etc. powder granule or liquid.
Packaging Capacity
160
Pouch Width
17-50mm
Weight
1800
See it run
Technical Parameters
| Model | Pouch Length | Pouch Width | Packaging Capacity | Film width | Lanes No | Weight | Machine Dimensions(L*W*H) |
|---|---|---|---|---|---|---|---|
| BVS4-480 | 50-180mm | 17-50mm | 160 | 480mm | 4 | 1800 | 1530*1880*2700mm |
| BVS6-480 | 50-180mm | 17-30mm | 240 | 480mm | 6 | 1900 | 1530*1880*2700mm |
| BVS6-680 | 50-180mm | 17-45mm | 240 | 680mm | 6 | 2000 | 1730*1880*2700mm |
| BVS8-680 | 50-180mm | 17-30mm | 320 | 680mm | 8 | 2100 | 1730*1880*2700mm |
Engineering & Features
Can The Machine Running For The Different Bag Size？
When change bag width,need replace “bag forming device/horizontal seal bar/punching knife”;when change bag length,only need adjust the machine,no need replace the parts.so if customer purchase more than 4 lanes machine,usually we suggest customer keep the bag width same,only change the length for different volume.
How About The Cutting?

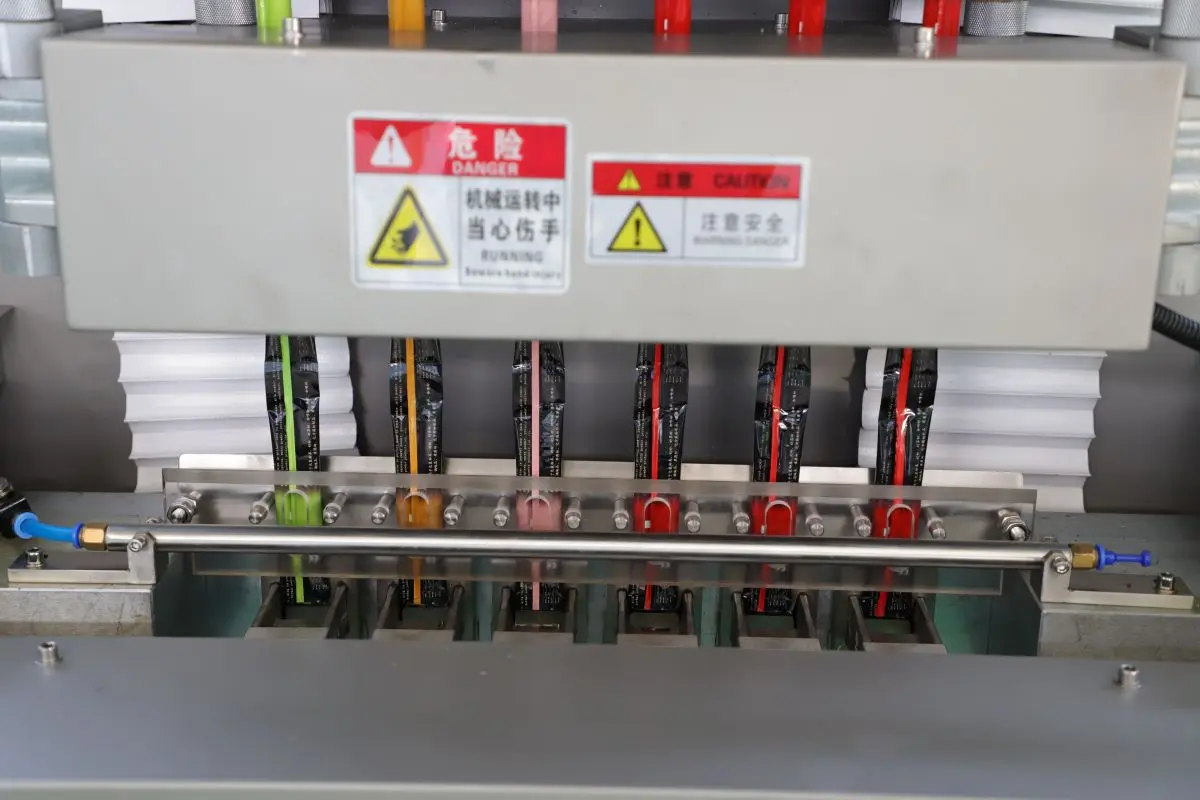

For multi-lanes machine,how many lanes will provide how many sets of punching knife,by this way can keep the bag cutting appearance good,also if one of the knife broken,other’s can working.
How To Improve The Aesthetics Of Bags?
By adjusting the temperature of the sealing block, the seals more smoothly.
